If you’re looking for the best gauge wheel measuring tools for 2026, I recommend checking out versatile options like the Universal Car Wheel Bolt Pattern Measuring Tool and the Wheel PCD Gauge, which support various bolt patterns and are durable. Tools with dual measurement units and easy handling make work faster and more accurate. Keep exploring, and you’ll discover more about features that can help you pick the perfect tool for your needs.
Key Takeaways
- Top-rated gauge wheel measuring tools feature durable materials like ABS plastic and high-strength plastic for long-term reliability.
- Compatibility with 4, 5, 6, and 8-lug wheel patterns ensures versatile vehicle fitment.
- Many tools include dual measurement units (imperial and metric) for accuracy across regional standards.
- User-friendly designs with sliding calipers, clear markings, and removable parts enable quick, precise measurements.
- Compact, lightweight, and portable options suit both professional mechanics and DIY enthusiasts in various environments.

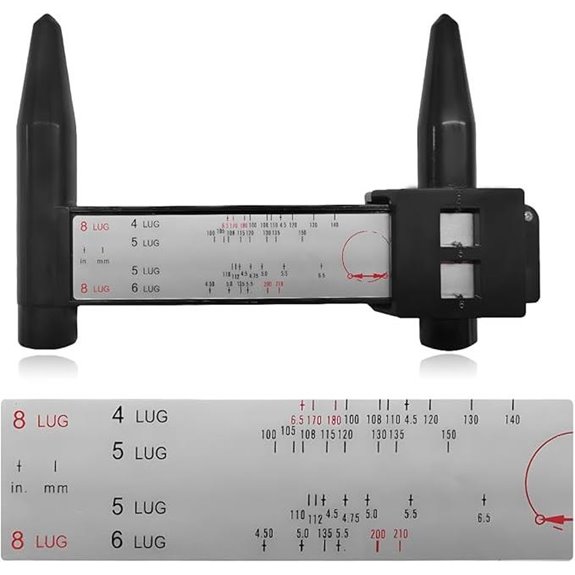

Universal Car Wheel Bolt Pattern Measuring Tool
If you’re looking for a reliable tool to measure wheel bolt patterns accurately, the Universal Car Wheel Bolt Pattern Measuring Tool is an excellent choice, especially for DIY enthusiasts and professionals alike. Made of tough ABS material, it’s durable, resistant to deformation, and provides stable measurements. Its compact, lightweight design makes it easy to carry and store. I find it straightforward to use—just place it on the hub, adjust the caliper, and read the measurement. It’s compatible with most 4, 5, 6, and 8 lug wheels, ensuring precise fitment and safety. This tool’s accuracy and versatility make it a must-have for any vehicle maintenance kit.

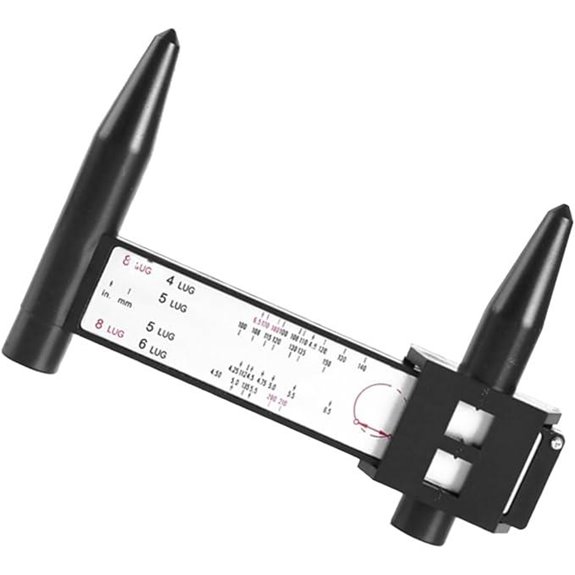

Wheel PCD Gauge for Bolt Pattern Measurement
The Wheel PCD Gauge is an essential tool for anyone needing precise bolt pattern measurements, especially for tire shops, car dealers, and DIY enthusiasts. It’s designed to quickly and accurately measure PCD data across various wheel types, supporting 4, 5, 6, and 8 lug configurations. The gauge features a sliding caliper that easily matches up with lug or hub holes, providing precise readings in both inches and metric units. Its compact, portable design makes it convenient to use on the spot, ensuring compatibility and proper fitment for different vehicles. This tool simplifies bolt pattern measurement and helps prevent installation errors.

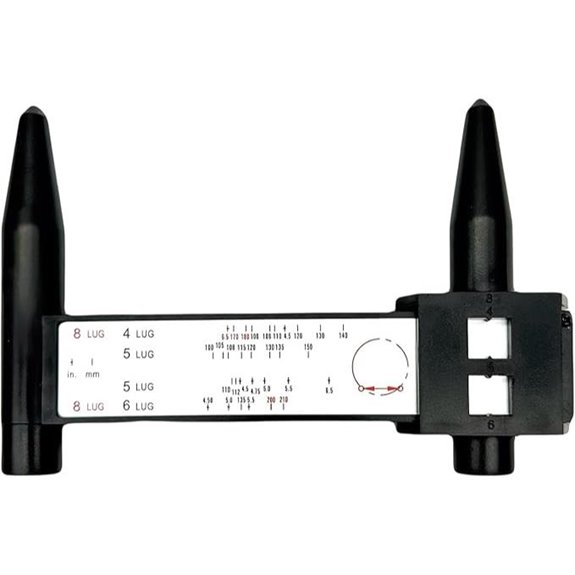

Hovom PCD Wheel Rim Bolt Pattern Gauge
Designed for both DIY enthusiasts and professionals, the Hovom PCD Wheel Rim Bolt Pattern Gauge offers precise measurement of wheel hub bolt spacing, ensuring perfect fitment every time. Made from high-strength plastic, it’s lightweight, wear-resistant, and durable for long-term use. To measure, I insert the center pin into a screw hole, slide the arm into a diagonal hole, and read the scale for an accurate PCD size. It fits most vehicles with 4, 5, 6, or 8-hole hubs, including cars, trucks, and SUVs. Its compact design makes it easy to carry and store, making wheel customization and maintenance straightforward.

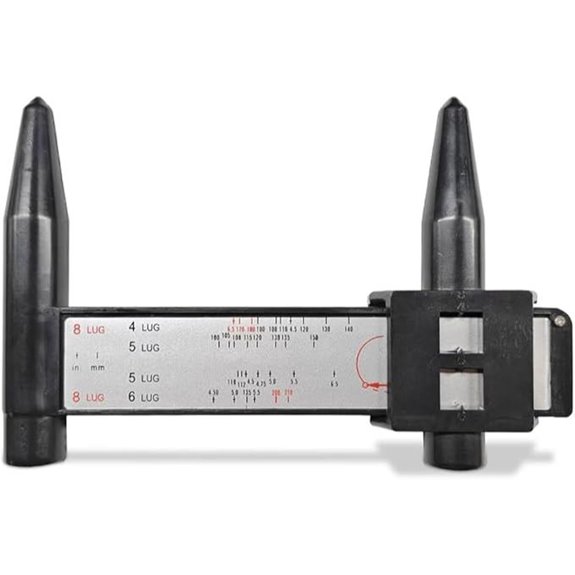

FIRSTINFO F3922 Wheel Bolt Pattern Gauge
For anyone seeking an accurate and easy-to-use wheel bolt pattern measurement tool, the FIRSTINFO F3922 Wheel Bolt Pattern Gauge stands out. This professional-grade tool combines a slide rule, PCD ruler, and measurement features to simplify measuring wheel or stud bolt patterns. It’s compatible with most vehicles, supporting 3, 4, 5, and 6 lug patterns. Designed and made in Taiwan with premium quality, it’s built for durability. Using it is straightforward—just slide the ruler to match lug or hub holes. Plus, it comes with a generous warranty of up to 22 months, backed by responsive customer support.
Universal Wheel Bolt Pattern Measuring Tool
If you’re frequently working with various wheel types, the Universal Wheel Bolt Pattern Measuring Tool is an essential addition to your toolkit. It fits 5, 6, and 8-hole rims, trailer axles, and second-hand wheels, making it versatile. The tool features five precise hole markings—100mm, 4.5, 4.75, 5, and 5.5 inches—matching common specifications. With its integrated 5-hole design, you can identify bolt patterns in just 10 seconds without calculations. Made from durable acrylic, it resists pressure, oil, and corrosion. This lightweight, long-lasting tool simplifies wheel matching and modifications, saving you time and ensuring accuracy on every job.

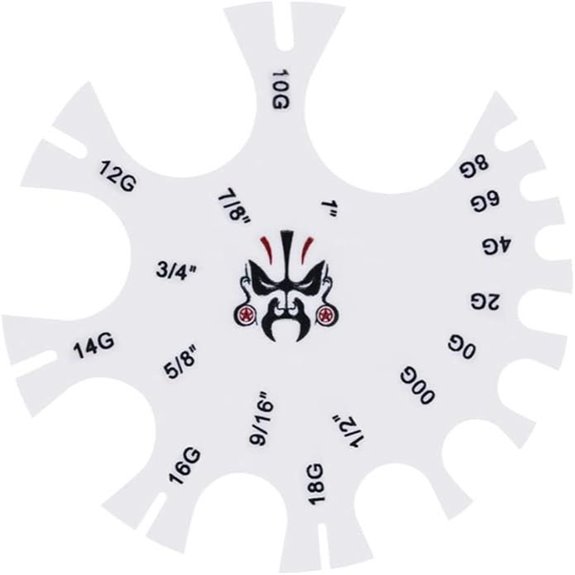

COOEAR Acrylic Piercing Gauge Measurement Wheel 18G-1 Inch.
The COOEAR Acrylic Piercing Gauge Measurement Wheel stands out as an ideal choice for professionals and enthusiasts who need precise, easy-to-read measurements for body piercings. Made of durable acrylic, it features a 4-inch width and covers gauges from 18G to 1 inch (1mm to 25mm). Its 1.2mm thickness ensures stability during use. The wheel is protected by removable brown paper on both sides, keeping it clean before use. Designed specifically for measuring piercing gauges, it provides clear, accurate readings, making it a reliable tool for anyone working with body jewelry. Its simplicity and accuracy make it a top pick for 2026.
Kingdder Wheel Bolt Pattern Measuring Tool
The Kingdder Wheel Bolt Pattern Measuring Tool stands out as an essential choice for automotive professionals and enthusiasts who need quick, accurate measurements. Its simple sliding caliper design makes measuring bolt circle diameter straightforward, whether for wheel replacement, repair, or sale. Crafted from durable ABS plastic, it’s lightweight yet sturdy enough to withstand daily use. Compatible with most 4, 5, 6, and 8-lug wheels, it covers a wide range of bolt patterns, ensuring versatility. The tool’s efficiency reduces measurement time and effort, making it ideal for busy garages or personal use. Overall, it’s a reliable, practical instrument that enhances accuracy and workflow in wheel fitting tasks.
Kingdder Wheel Bolt Pattern Measuring Tool (2 Pack)
For professionals and DIY enthusiasts who need quick, accurate bolt pattern measurements, the Kingdder Wheel Bolt Pattern Measuring Tool (2 Pack) offers an excellent solution. This pack includes two lightweight, durable ABS plastic gauges, perfect for frequent use or emergencies. Its simple sliding caliper design allows for fast, precise readings of metric or imperial data by matching wheel nut or hub holes. Compatible with most 4, 5, 6, and 8-lug wheels, it covers a wide range of bolt patterns. Whether you’re replacing wheels or verifying measurements, this set helps improve efficiency and accuracy, reducing trips to the shop or guesswork during installations.
PCD Gauge Ruler for Car Wheel Bolt Pattern Measurement
If you need an accurate, easy-to-use tool for measuring car wheel bolt patterns, the PCD Gauge Ruler is an excellent choice. Made from durable, high-quality plastic, it’s lightweight yet sturdy, ensuring stability and precision over time. With engraved inch and metric measurements, it allows quick and straightforward readings by sliding the caliper to match your wheel or hub holes. Suitable for most 4, 5, 6, and 8 lug wheels, it covers measurement ranges from 100mm to 210mm. This tool is perfect for auto repair shops or enthusiasts needing reliable, rapid PCD measurements without fuss. It’s a simple, essential addition to your wheel measurement kit.
Wheel PCD Gauge for Wheel Rim Bolt Pattern Measurement
A wheel PCD gauge is an essential tool for anyone needing precise bolt pattern measurements, especially mechanics and DIY enthusiasts working on wheel replacements or repairs. It measures bolt patterns for most wheel configurations, including 4-, 5-, 6-, and 8-lug setups, accommodating a wide range of wheel sizes. The high-precision scale guarantees accurate readings, while the two measuring jaws easily fit into bolt holes for quick, reliable results. Made from durable plastic, it withstands regular use and rough handling. Its compact size makes it portable and convenient for on-the-go measurements, making it an indispensable part of your wheel repair toolkit.
eaacaa 4-Piece Wheel Bolt Pattern Measuring Guides
The eaacaa 4-Piece Wheel Bolt Pattern Measuring Guides stand out as an essential tool for DIY enthusiasts and professionals who need quick, accurate measurements of wheel bolt patterns. This set includes templates for 4, 5, and 6 lug configurations, making it versatile for various vehicles. With dual SAE and Metric scales, it ensures compatibility with different wheel types. Made from durable high-impact plastic, these guides withstand frequent use in workshops or home garages. Simply align the templates with your bolt holes to determine fitment in seconds, eliminating guesswork and preventing mismatched hubs. It’s a reliable, straightforward solution for wheel replacements, upgrades, or customization projects.
Wheel Bolt Pattern Measuring Tool (PCD Ruler)
For anyone needing to quickly and accurately determine wheel bolt patterns, the Wheel Bolt Pattern Measuring Tool (PCD Ruler) stands out as a versatile choice. It works with most 4, 5, 6, and 8-lug wheels, covering a wide range of vehicles. The tool provides both inch and metric measurements, ensuring precision regardless of standards. It supports common bolt patterns like 4X100, 5X114, 6X135, and more. Easy to use, it functions as a lug bolt pattern measuring tool, simplifying the process of identifying wheel compatibility. Whether you’re replacing or upgrading wheels, this PCD ruler saves time and reduces errors.
Wheel PCD Gauge for Rim Bolt Pattern Measurement
When measuring bolt patterns on various rims, the EZISOE Wheel PCD Gauge stands out as an ideal choice for automotive enthusiasts and professionals alike. This stainless steel tool measures bolt patterns on most 4, 5, 6, and 8-lug wheels, covering a wide range of sizes from 4×98 to 8×170. Its precision ±0.0001 inches guarantees accurate readings, and the easy sliding caliper design allows for quick measurements. Weighing just 5 ounces, it’s lightweight and portable. With a user rating of 4.4 stars, it’s trusted by many. The EZISOE PCD Gauge simplifies the process, making rim bolt pattern measurement straightforward and reliable.
Wheel Rim Bolt Pattern Measuring Tool
If you’re looking for a reliable tool to measure wheel bolt patterns accurately, the Wheel Rim Bolt Pattern Measuring Tool stands out as an excellent choice. Made from high-strength ABS plastic, it’s durable, impact-resistant, and corrosion-proof, ensuring long-term use. It fits various vehicles, including cars, SUVs, trucks, and RVs, supporting common bolt configurations like 4X4.5, 5×5.5, and 8×170. The sliding caliper with clear scale markings makes measurements quick and easy, supporting both inches and metric units. Compact and lightweight, it’s perfect for on-the-spot measurements, helping you avoid safety issues caused by incompatible bolt patterns.
Wheel PCD Gauge for Automotive Wheel Measurement
The KVAEY Wheel PCD Gauge stands out as an ideal choice for automotive enthusiasts and professionals who need quick, accurate measurements of wheel bolt patterns. Made from durable plastic, it’s lightweight and portable, fitting easily in your toolbox. This tool measures hub hole distances precisely across 4, 5, 6, and 8 lug configurations, compatible with most vehicles. Simply place the jaws on the inner edges of bolt holes, and read the measurements in inches or metric units. To guarantee accuracy, measure multiple times on a clean, flat surface with the tool perpendicular to the bolt holes. It’s a reliable, user-friendly option for precise wheel measurements.
Factors to Consider When Choosing a Gauge Wheel Measuring Tool
When selecting a gauge wheel measuring tool, I focus on how well it fits my vehicle and meets accuracy standards. I also consider its durability, ease of use, and how portable it is for convenience. These factors guarantee I choose a reliable tool that suits my specific needs.
Compatibility With Vehicles
Choosing a gauge wheel measuring tool that’s compatible with your vehicle starts with verifying that it supports your specific bolt pattern, such as 4, 5, 6, or 8 lug configurations. Make sure the tool’s measurement range includes the bolt pattern sizes used by your vehicle’s make and model. It’s also important that the gauge measures both metric and imperial units to suit regional standards. The design should fit securely into your wheel hub or bolt holes without requiring excessive force or adjustments. Durability matters too; select a gauge made from tough materials that can handle different vehicle types like cars, SUVs, trucks, and trailers. Ensuring compatibility guarantees accurate measurements and smooth operation, saving you time and effort during your vehicle inspections.
Measurement Accuracy Standards
Accurate measurements are indispensable for guaranteeing your gauge wheel tool provides reliable fitment verification. When selecting a tool, look for those that meet measurement accuracy standards of within ±1 millimeter or ±0.05 inches, ensuring precise results every time. High-precision scales and fine calibration mechanisms are critical, as they help maintain consistency across multiple uses. The quality of materials, such as stainless steel or high-grade plastics, also impacts long-term accuracy by resisting wear and deformation. Proper alignment and perpendicular placement of the gauge to the wheel or hub surface are essential for accuracy. Additionally, regular calibration checks are necessary to uphold measurement standards and guarantee your tool remains reliable, compliant with automotive safety and quality regulations.
Material Durability and Resistance
Selecting a gauge wheel measuring tool requires attention to its material durability and resistance, as these factors directly impact its longevity and performance. I look for tools made from high-impact, impact-resistant materials like ABS plastic or reinforced acrylic, which can handle drops and rough handling without damage. Resistance to deformation and wear is vital to guarantee the tool maintains measurement accuracy over time, even with frequent use outdoors or in workshops. Corrosion resistance is also important; materials like stainless steel or quality plastics prevent rust and degradation from moisture or chemicals. A lightweight yet sturdy construction improves portability without sacrificing strength. Additionally, resistance to environmental factors such as oil, dust, and temperature fluctuations guarantees consistent, reliable readings, making durability a top priority when choosing a gauge wheel measuring tool.
Ease of Use Features
When evaluating gauge wheel measuring tools, ease of use is essential for efficient and reliable measurements. A user-friendly tool features a simple sliding caliper or ruler mechanism that allows quick adjustments without complicated setup. Clear, easy-to-read measurement markings in both inch and metric units help minimize errors and speed up readings. A compact, lightweight design enables single-handed operation, making handling straightforward during busy work. Features like locking mechanisms or a stable grip improve accuracy by preventing accidental shifts while reading. Additionally, intuitive alignment guides or visual aids help ensure correct positioning, promoting consistent results. By prioritizing these ease of use features, I can work more efficiently and confidently, reducing measurement time and increasing accuracy in my projects.
Portability and Storage
Portability and storage are key factors to contemplate when choosing a gauge wheel measuring tool. I look for models that are compact and lightweight, making them easy to carry in my vehicle or toolbox without adding unnecessary bulk. The tool’s dimensions should fit comfortably in storage compartments or pockets, helping me stay organized and avoid clutter. I also prefer designs with protective covers or cases to safeguard the device during transport and storage. Durability is vital, so I opt for tools made from impact-resistant materials like high-impact plastic or acrylic that can withstand frequent handling. Ideally, the tool weighs under 200 grams (7 ounces), allowing me to perform quick, on-the-go measurements without feeling weighed down. This combination of portability and smart storage options makes my work more efficient.
Price and Warranty Options
Price and warranty options play a crucial role in choosing the right gauge wheel measuring tool, as they directly impact your long-term value and peace of mind. I recommend considering a tool that fits your budget without sacrificing essential features. While a lower price might seem attractive, verify it’s made from durable materials like high-impact plastics to avoid frequent replacements. Check if the tool includes a warranty—12 or 24 months is common—to safeguard against defects or measurement errors. Compare warranty coverage details carefully, including what damages are covered and if extended warranties are available. Remember, investing in a slightly higher-priced tool with a thorough warranty often yields better reliability and durability, providing peace of mind and saving you money in the long run.
Frequently Asked Questions
How Accurate Are Digital Versus Manual Gauge Wheel Measuring Tools?
Digital gauge wheel measuring tools are generally more accurate than manual ones because they eliminate human error and provide precise readings, often to the millimeter or inch. I’ve found digital tools to be especially reliable for large or complex projects. However, manual tools can be quite accurate if used carefully and calibrated regularly. Ultimately, I recommend choosing based on your specific needs and the level of precision required.
Can These Tools Measure Non-Standard or Custom Wheel Bolt Patterns?
Sure, these tools can measure non-standard or custom wheel bolt patterns—if you’re willing to embrace the chaos. I’ve seen folks try, only to realize their gauge wheels aren’t quite designed for the quirkiest bolt arrangements. But don’t worry! With some ingenuity and adjustable features, most modern measuring tools can handle odd patterns, saving you from the frustration of guesswork and ensuring your custom wheels fit perfectly.
Are There Specific Tools Recommended for Use With Alloy or Steel Wheels?
Yes, I recommend using digital calipers or specialized bolt pattern gauges designed for alloy or steel wheels. These tools are precise and durable, making them ideal for measuring different wheel materials. I always guarantee the tools I choose are compatible with the specific wheel type to avoid damage. Proper tools help me get accurate measurements quickly, whether I’m working with alloy or steel wheels.
How Do Weather Conditions Affect the Measurement Accuracy?
Ever notice how weather can throw off your measurements? I find that temperature, humidity, and even wind can affect gauge wheel accuracy. Warmer temps cause materials to expand, while cold tightens them up, skewing results. Humidity can cause corrosion or moisture buildup, and wind might shift the tool slightly. To get the best readings, I always measure in stable weather conditions and calibrate my tools regularly.
What Maintenance Is Required to Keep Measuring Tools in Optimal Condition?
To keep my measuring tools in top shape, I regularly clean them with a damp cloth and dry thoroughly to prevent rust. I check for any damage or wear, especially on wheels and measurement scales, and calibrate them if needed. I store them in a dry, protected place, avoiding extreme temperatures. Consistent maintenance guarantees accurate readings and prolongs their lifespan, saving me time and money in the long run.
Conclusion
Choosing the right gauge wheel measuring tool is like finding the key to unseal perfect fitment—each one offers unique advantages. As you weigh your options, remember that precision isn’t just a goal but a necessity for safety and style. So, whether you’re a seasoned pro or a curious beginner, trust that the right tool will turn your wheel measurements into a seamless journey—because in this game, accuracy truly rules.
